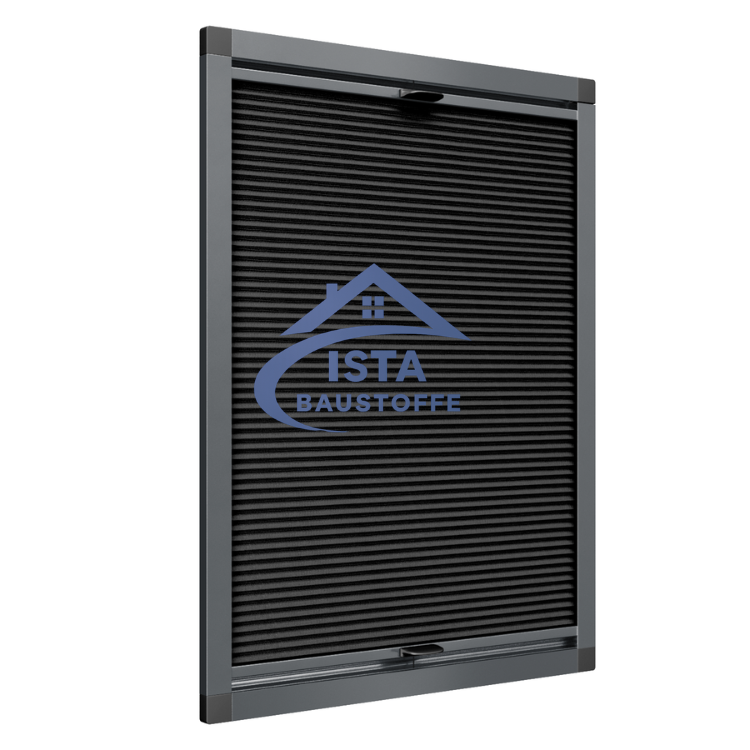

Honeycomb pleated blackout system for roof windows
Maximum blackout, better insulation & more living comfort
This high-quality honeycomb pleated blind was specially developed for roof windows and provides 100% blackout , improved heat and sound insulation as well as a pleasant room climate – ideal for bedrooms, children’s rooms or home cinemas.
🔧 Material & Construction
- Frame: Robust aluminum profile (35 mm width, 22 mm depth) – stable & durable
- Pleated blind: High-quality honeycomb pleated blind with integrated aluminum coating
- Operation: Horizontally movable (← / →) – specially designed for roof windows
🌡️ Honeycomb pleated blind technology
- 100% blackout:
The special honeycomb structure with aluminum inner coating reliably blocks sunlight. - Thermal insulation & heat protection:
Keeps rooms warm in winter and effectively reduces heat in summer. - Energy saving:
Supports the reduction of heating and cooling costs - Sound insulation:
Noticeably reduces outside noise for greater peace and quiet. - Healthy indoor climate:
Odorless – ideal for bedrooms and living rooms
✅ Advantages at a glance
- ✔ Complete blackout for restful sleep
- ✔ Effective heat and cold protection
- ✔ Additional noise reduction
- ✔ Simple & convenient operation
- ✔ Modern, high-quality design
Measurement instructions for screw systems.pdf –> Screw
YouTube –> here
Optional: Double-sided adhesive tape
Instructions for the bonding agent (Primer 94):
- The surfaces must be thoroughly cleaned beforehand with IPA wipes.
- Apply the primer to both surfaces to be bonded.
- Allow the solvent to evaporate for 2 minutes.
- Apply the tape and apply pressure.
Step-by-step application (orange)
- Cleaning: Thoroughly clean both surfaces to be bonded with IPA wipes (isopropanol) to remove grease and dust.
- Application: Wipe the primer evenly over both contact surfaces. Only a thin, even film should be formed.
- Flash-off time: Allow the solvent to evaporate for approximately 2 to 3 minutes, until the surface appears dry.
- Gluing: Apply the tape or adhesive to the prepared surface.
- To secure: Apply firm pressure to the adhesive area to ensure an optimal bond.
Important notes
on materials: Particularly effective on materials such as PE, PP, silicone or Teflon, which normally adhere poorly.
Safety:
This product is highly flammable and can cause skin irritation. Use only in well-ventilated areas.
Residue: Any primer residue can often be cleaned with isopropanol or a special adhesive remover.
